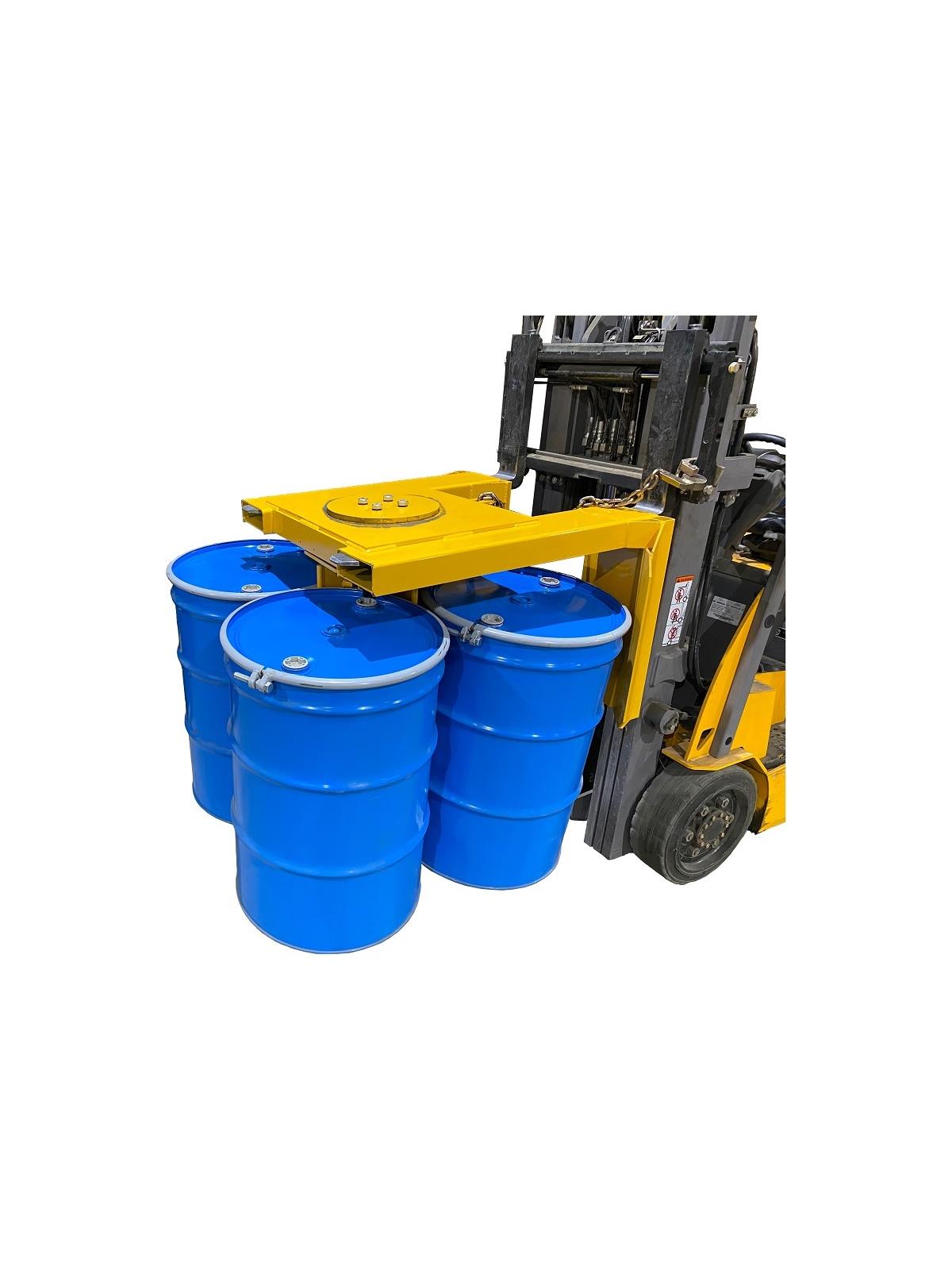

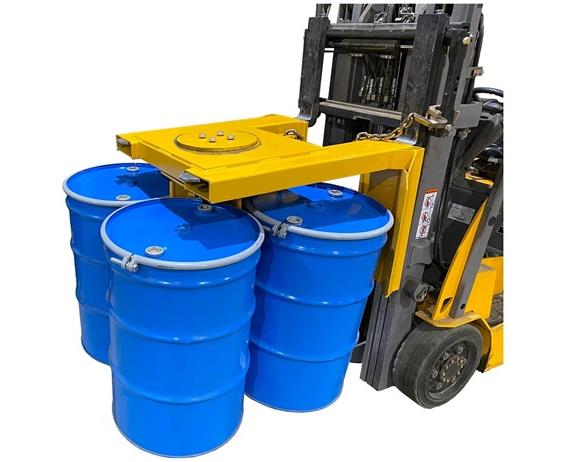

Eagle-Grip® Model EL4F

  • Heavy-Duty Clamping Mechanism.

Easy Lift Equipment's Eagle-Grip® HEL4F Heavy-Duty Clamping Mechanism is designed for high-volume drum handling. The HEL4F is all-mechanical and capable of handling one to four fully loaded drums at a time without the need for hydraulic or electrical connections to the lift truck. It's the ideal attachment for loading or unloading trailers, oversea shipping containers or for palletizing drums from filling lines. The HEL4F consists of a floating head with a centering guide which helps properly position the clamping mechanism into place, while lowering the attachment between up to 4 drums. FOB Shipping Point.

See Related Items tab for other EagleGrip® Attachment Options.




There are related items or accessories for this product. Please see the Related Items tab below.


Image Product No. Description Cap. (lbs.) Size
W x H x L
Drums Handled Wt. (lbs.) Qty Price Ea.
EnlargeEAGLE-GRIP® MODEL EL4F

HEL4F Fork Mount 6000 43-1/2 x 26 x 38" 1 to 4 505 $6,400.00
EnlargeEAGLE-GRIP® MODEL EL4F

HEL4FSRC Spark Resistant Model 6000 43-1/2 x 26 x 38" 1 to 4 562 $9,025.00
Enlarge

H-QC-MODELEL4F-OPTION Quick-Claw™ Safety Restraint System Option - - - - $1,800.00
