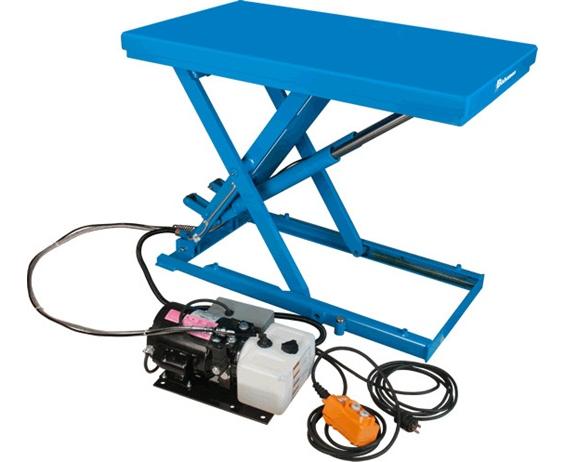

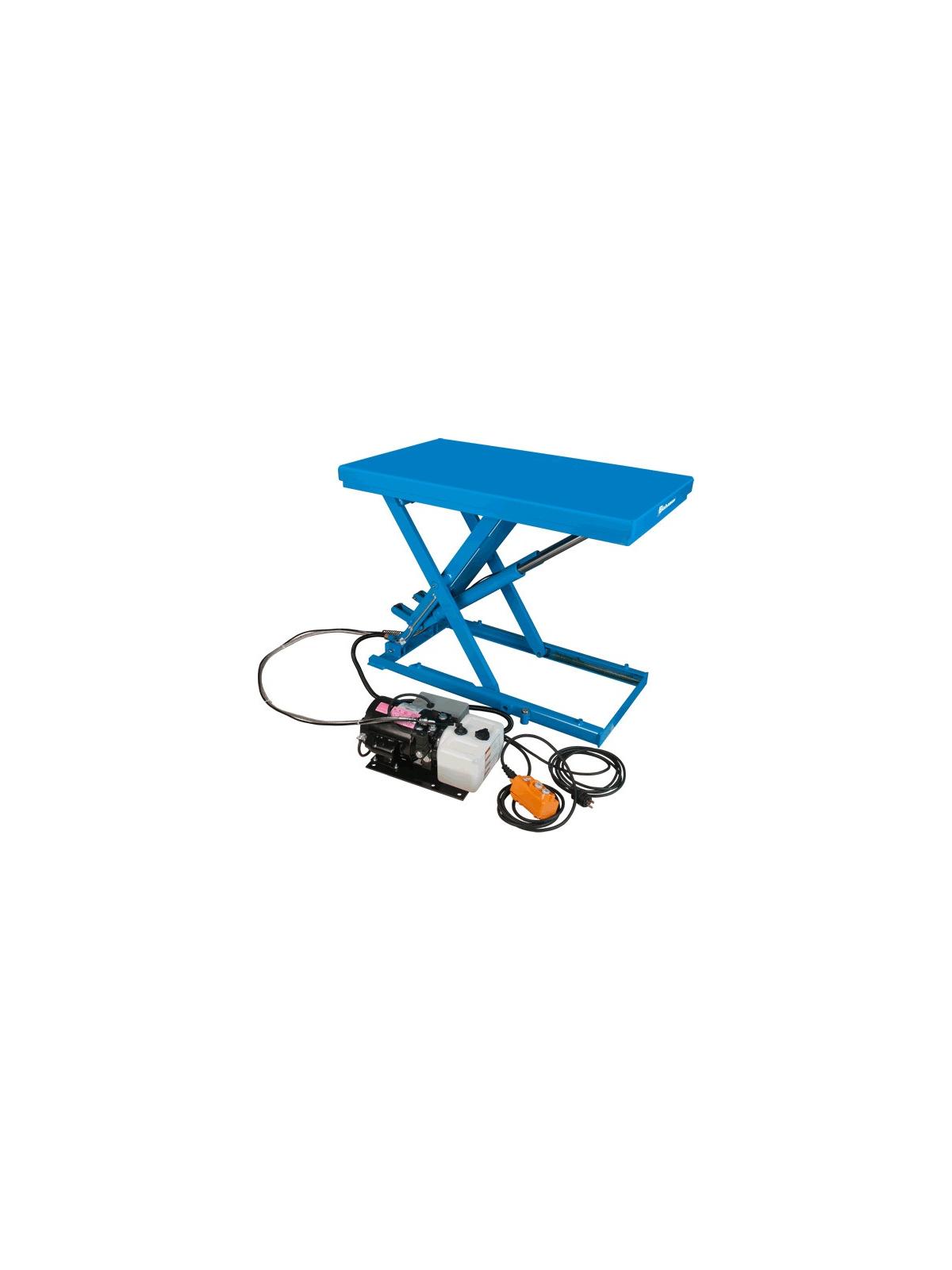

Bishamon's LoProfile™ lifts are electro-hydraulic lift tables that offer heavy-duty lifting power and convenient low profile functionality. These tables can handle capacities up to 4,400 lbs. and feature a variety of platform sizes and lift heights.

LoProfile™ tables can lift loads from a very low elevation of 2.9 in. to 4.3 in. This works well with handling equipment that requires a low profile, such as pallet jacks and 4-wheeled carts.

LoProfile™ tables are safe and durable. Every model features a full-perimeter, electric toe guard around the platform that ensures operator safety. They are built with a heavy-duty construction and captured scissor rollers for enhanced stability.

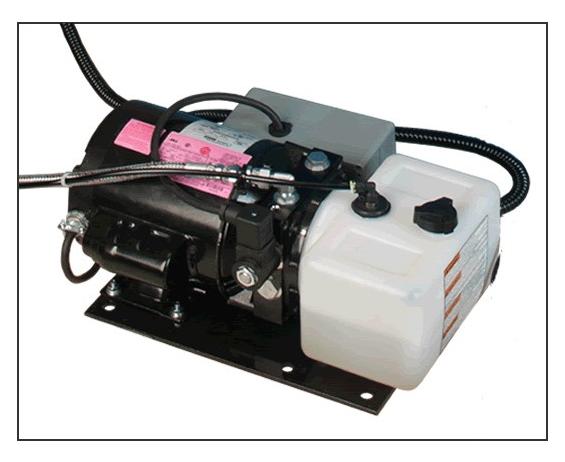

Lifting power is provided by a high-performance, external electro-hydraulic power unit with a steel braided hydraulic hose. Platform movement is controlled by a convenient hand-held push button control station. For additional functionality, LoProfile™ lifts can be used in conjunction with optional accessories such as a foot operated control and approach ramps.

The LoProfile™ series of lift tables increase worker productivity and reduce strain by positioning materials at a comfortable and convenient operating height. They maximize efficiency in a number of different environments, including production facilities, assembly areas, and warehouses. Designed for durability and practicality, LoProfile™ lift tables will last for years with minimal maintenance.

LX-100 & LX-200 Power Unit Options

*E = 1 HP / 115V

*1 = 1 HP / 230V / 1 Phase

*3 = 1 HP / 230V / 3 Phase

*3-480 = 1 HP / 480V / 3 Phase

Note: 3 Phase up time listed below. 1 Phase up time is approx. double.
