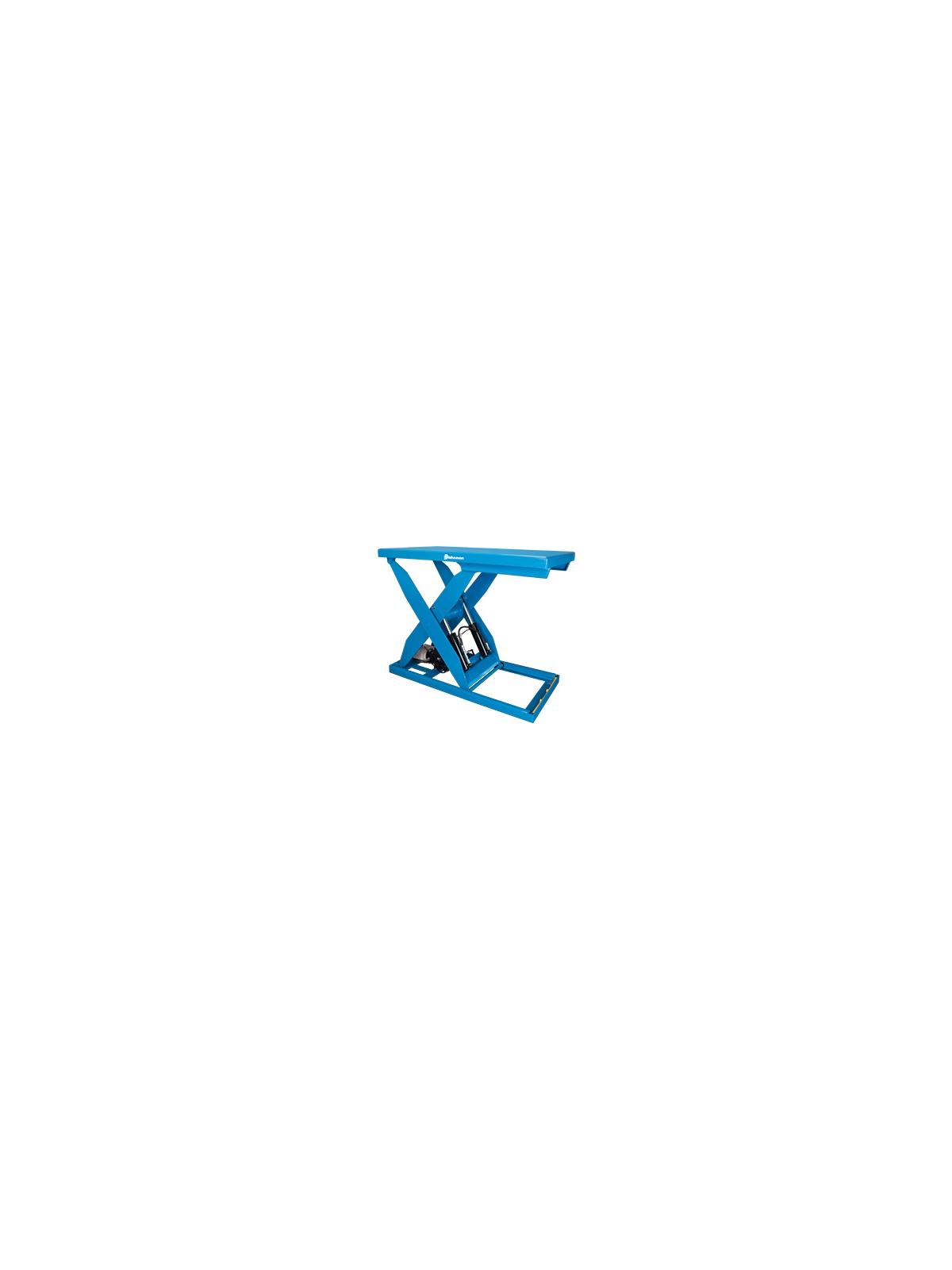

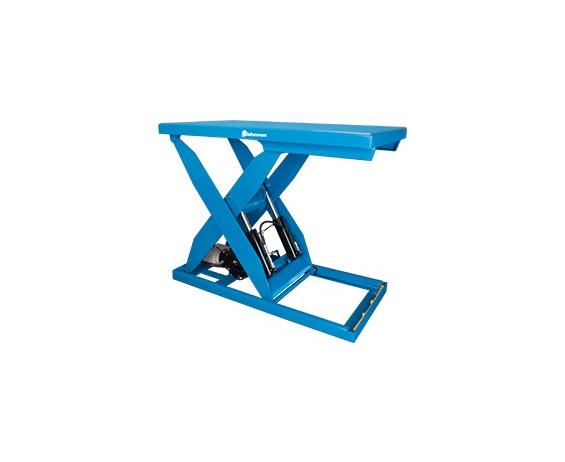

Bishamon Optimus L5k Series Electric-Hydraulic Scissor Lift Table

  • LIFTING CAPACITIES – Hydraulic Lift Tables In 2,000, 3,000 & 5,000 Lb. Capacities
  • PLATFORM – Fixed and Rotating Platforms
  • ROUNDED CORNERS – Intelligent Design with Rounded Platform Corners
  • STABILITY – Entrapped Scissor Rollers for Added Stability
  • SAFETY – Hinged Maintenance Bars Powder Coated Yellow for Safety

Lift Tables comply with ANSI MH 29:1:2012 "Safety Requirements for Industrial Scissor Lifts." Lift Tables have a 115 volt operator control system, flow limiting valves, pressure compensated flow control at power unit, and hinged maintenance bars. Self lubricating, maintenance free bushings at all pivot points for long life. Unitized, compact, internal power unit and reservoir combination. Contoured platform corners for operator safety. FOB Shipping Point.

Product No. L5K-4872
Accessory Decsription ---
Cap.
(lbs.)
5000
Platform
Size
48 x 72"48 72"
Platform Height
Lowered / Max. Raised
8.75" / 48.00"
Wt.
(lbs.)
10301030
